AB 180
Features
| Technical specifications | |
|---|---|
| Brand | Kubota |
| Type | Vertical, water-cooled 4-stroke IDI diesel engine |
| Number of cylinders | 4 |
| Bore x Stroke - mm(in) | 100.0 x 120.0 (3.937 x 4.724) |
| Aspiration | Naturally aspirated |
| Displacement - L (cu.in) | 3.769 (230.0) |
| Compression ratio | 20 |
| Power rating | 60.8 (80) / 2600 |
| Maximum torque - Nm (lb-ft) / rpm | 270.8 (199.7) / 1500 |
| Fuel injection pump type | Inline pump |
| Starter motor (V-kW) / Alternator (V-W) | 12 - 3.0 / 12 - 1080 |
| Weight (kg) | 286 KG |
| Inner diameter of seawater hose (mm) | 33.7 (1") |
| Inner diameter of diesel fuel inlet hose (mm) | 8 |
| Inner diameter of diesel fuel return hose (mm) | 6 |
| Length x Width x Height (mm) | 1126 x 625 x 760 |
* Gearbox excluded.
Technical specifications are subject to change without prior notice.
Dimensions and weight may vary depending on specific specifications.

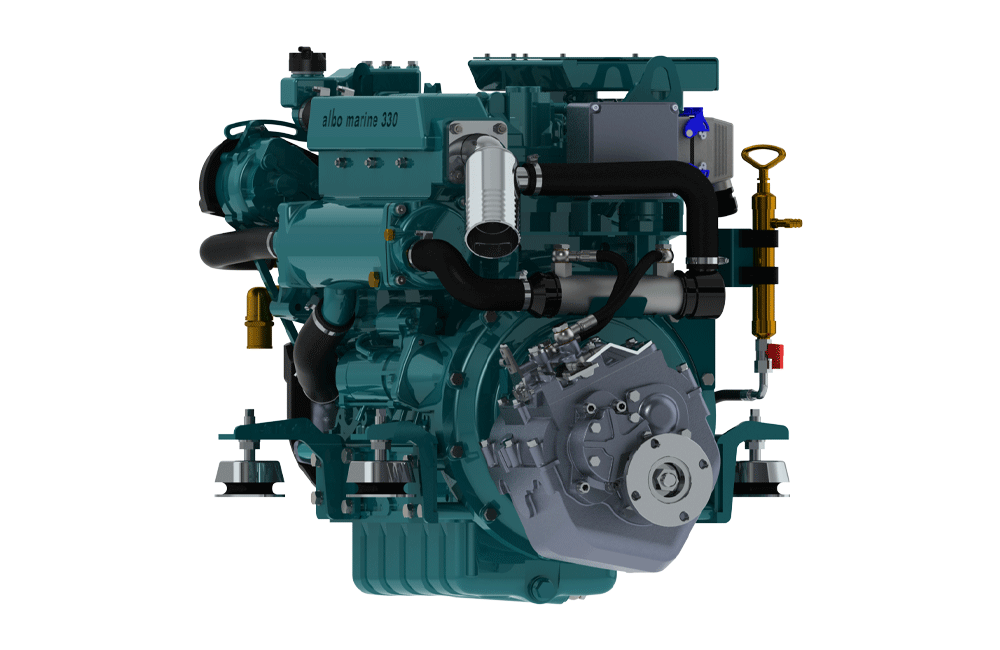

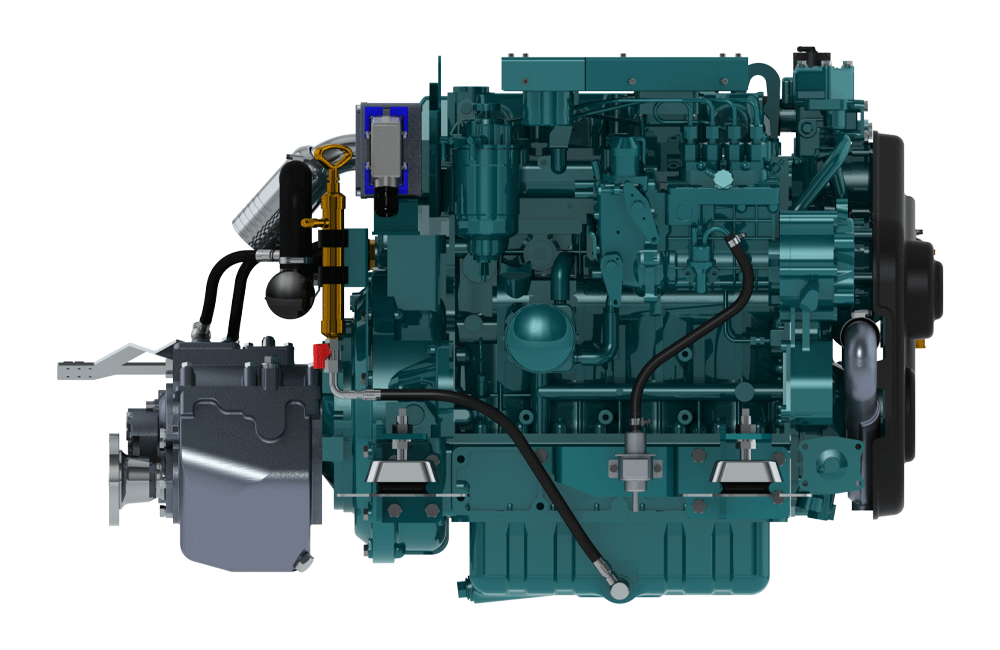

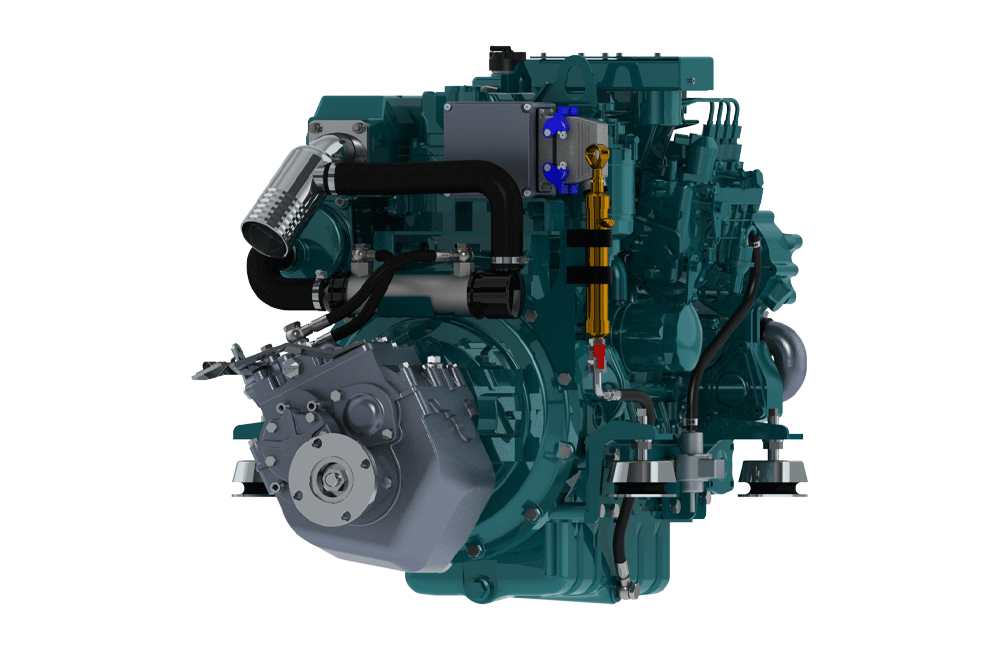

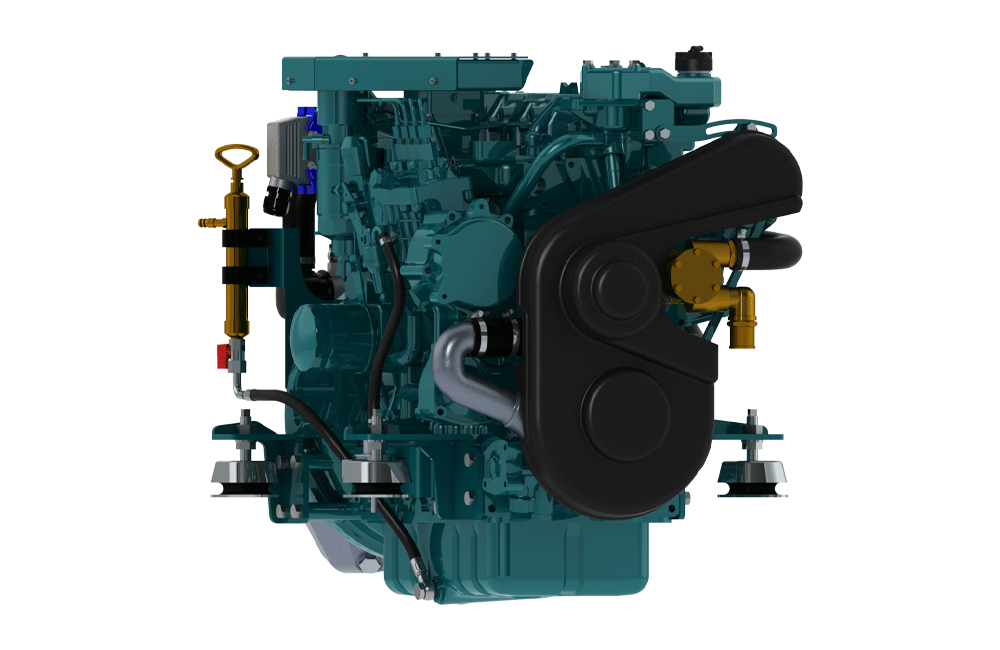

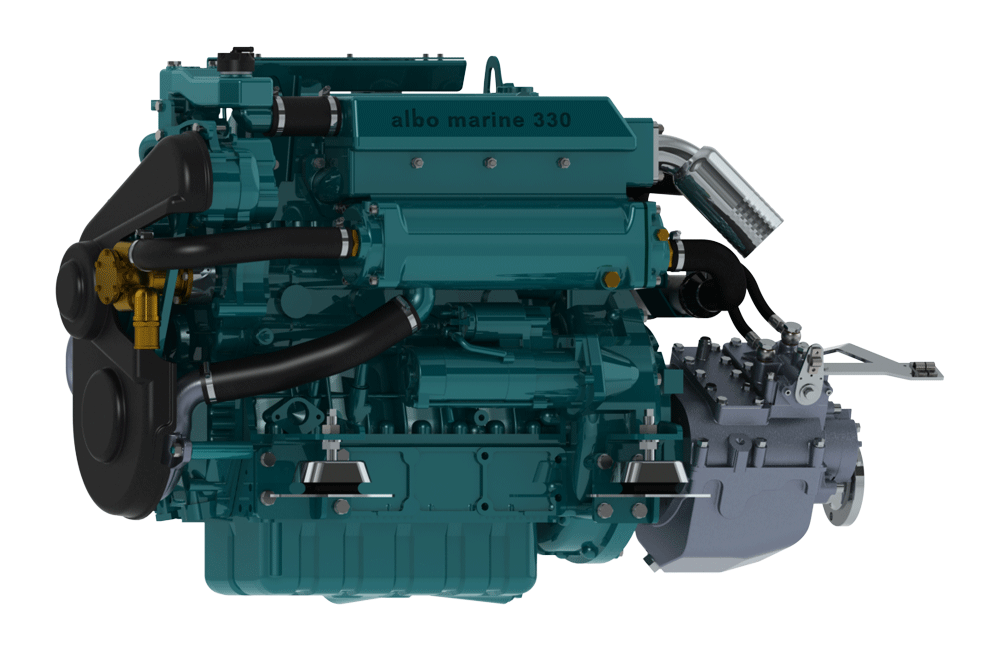

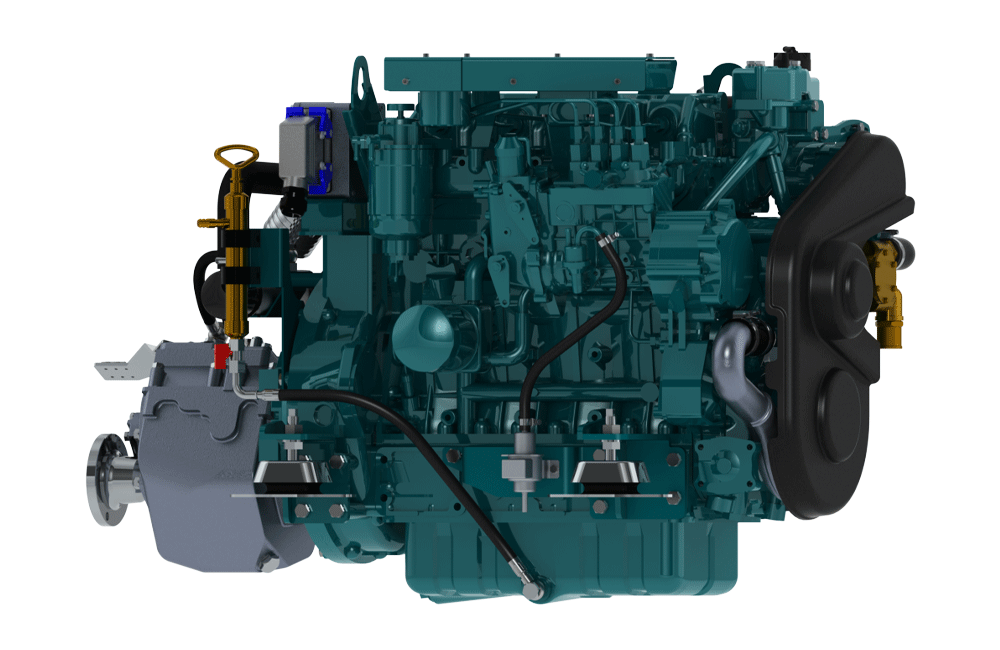

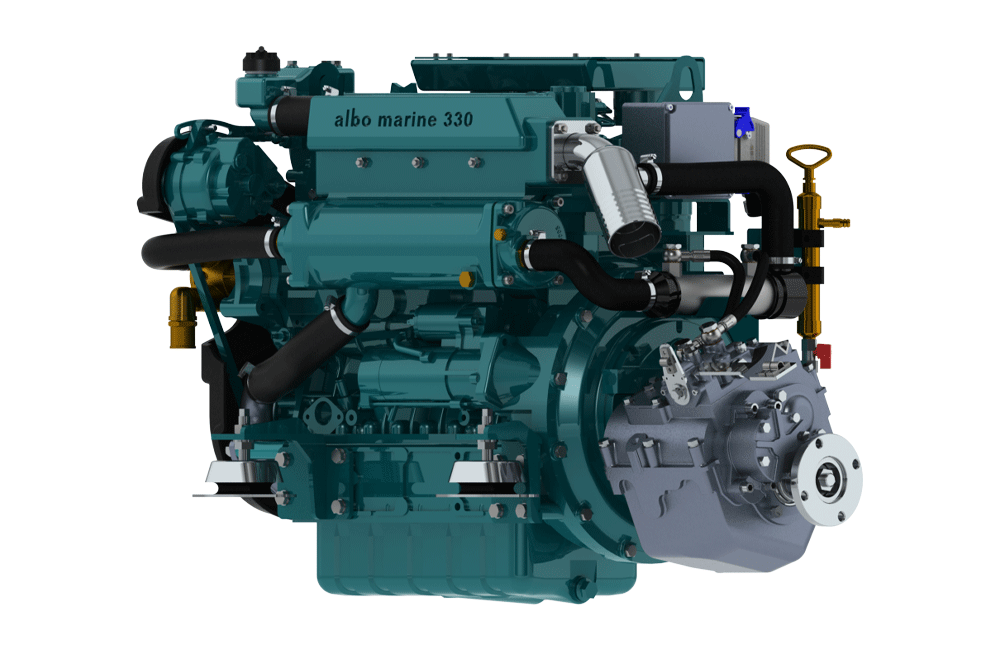

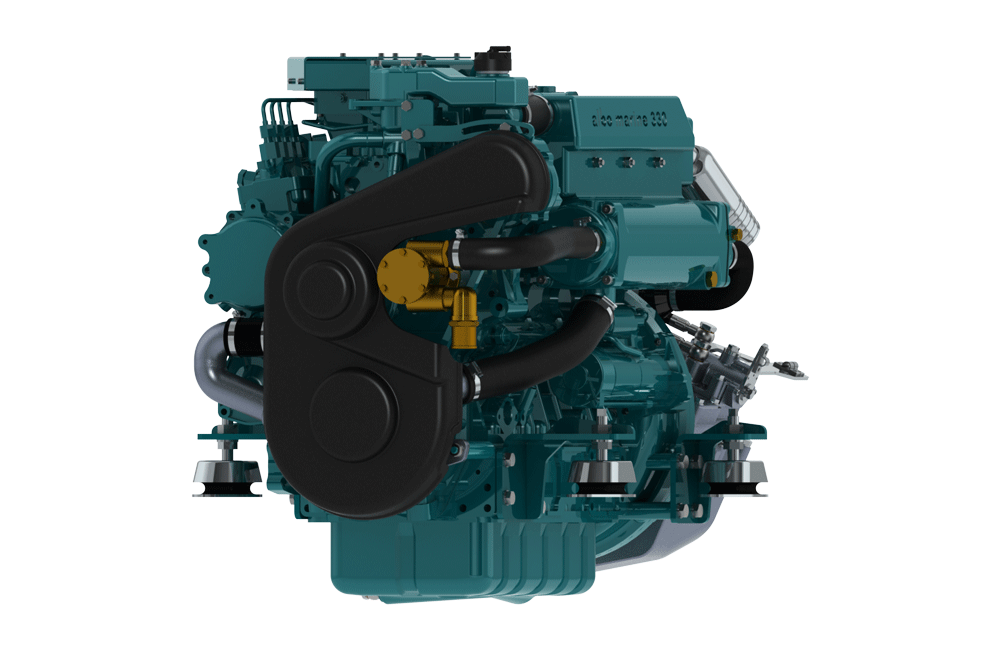

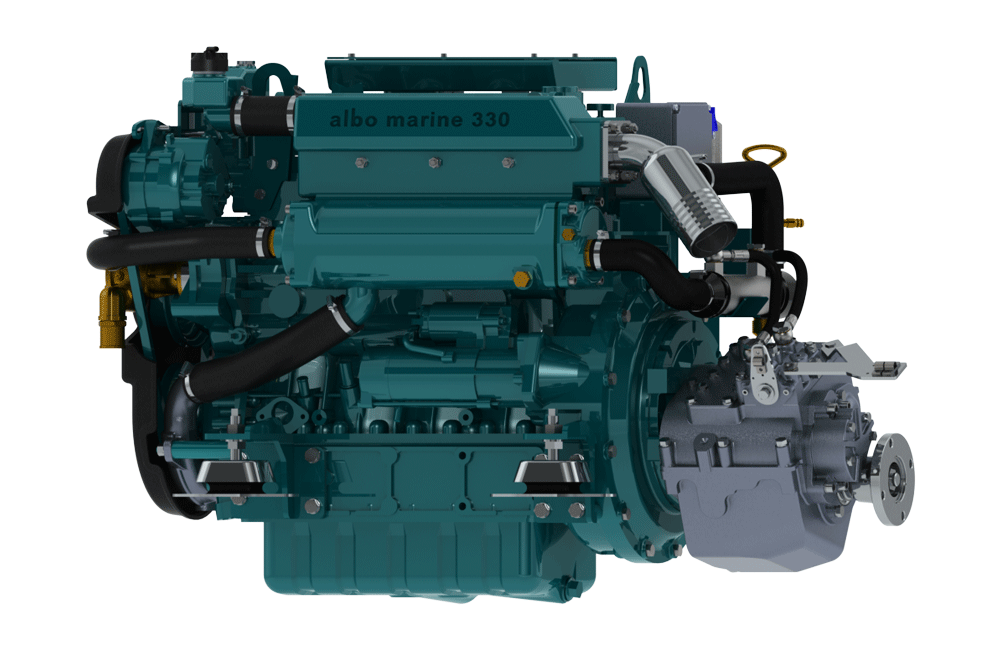

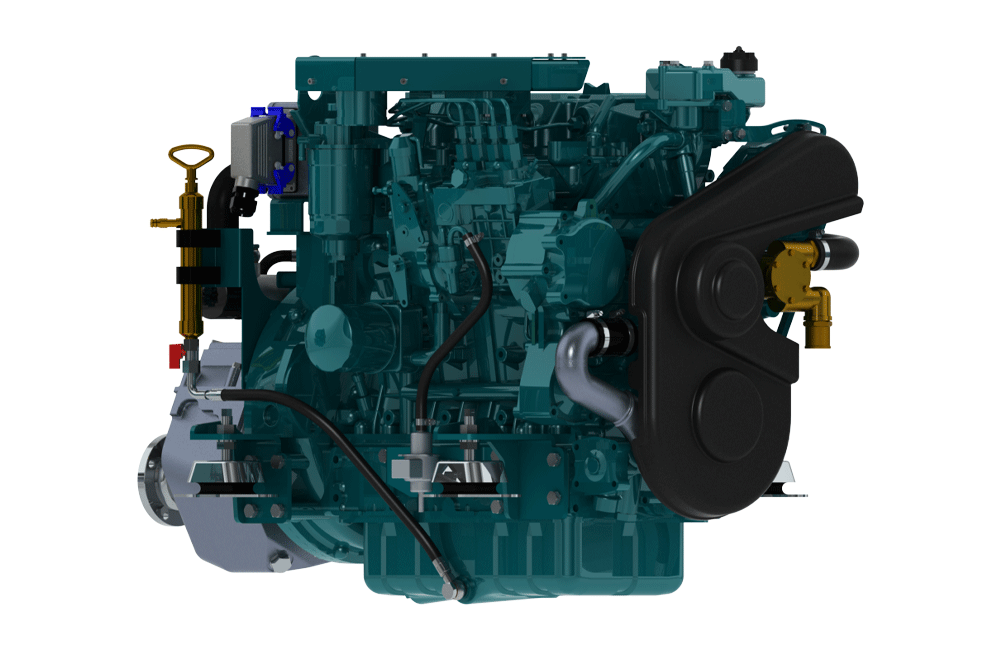

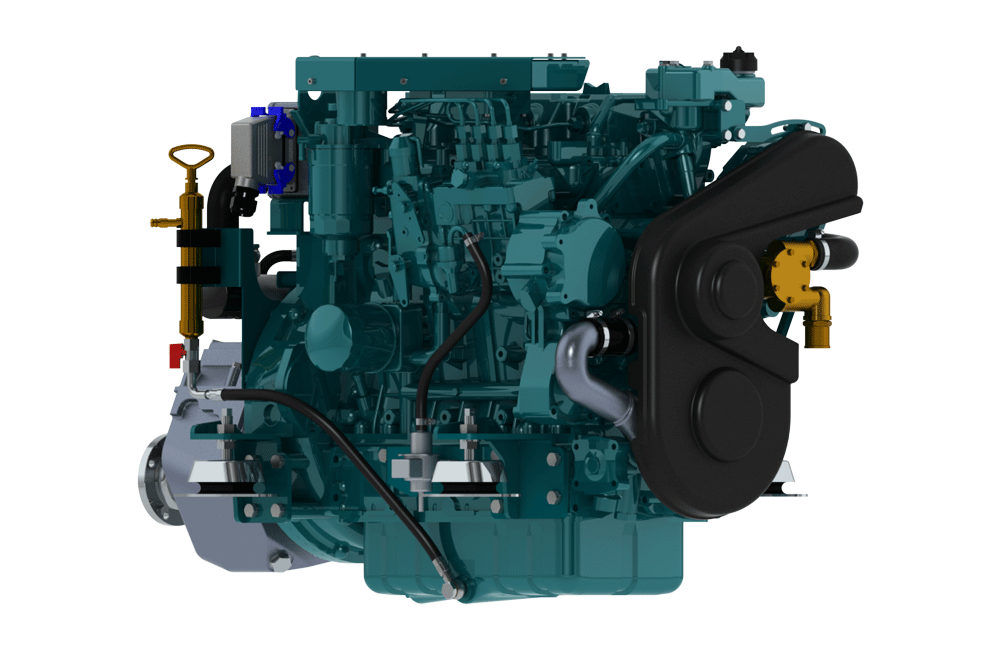

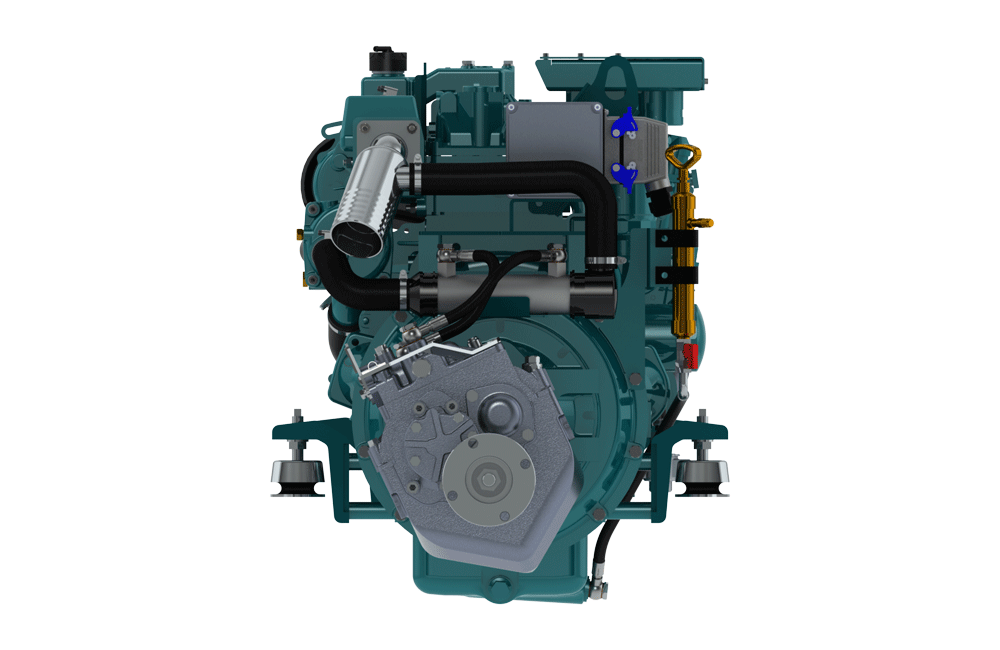

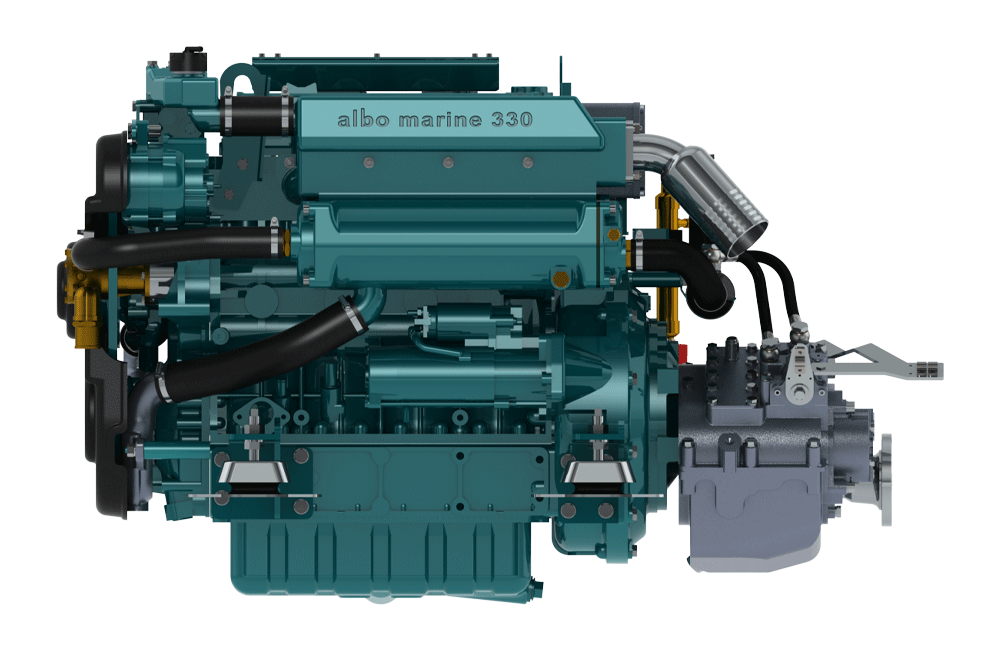

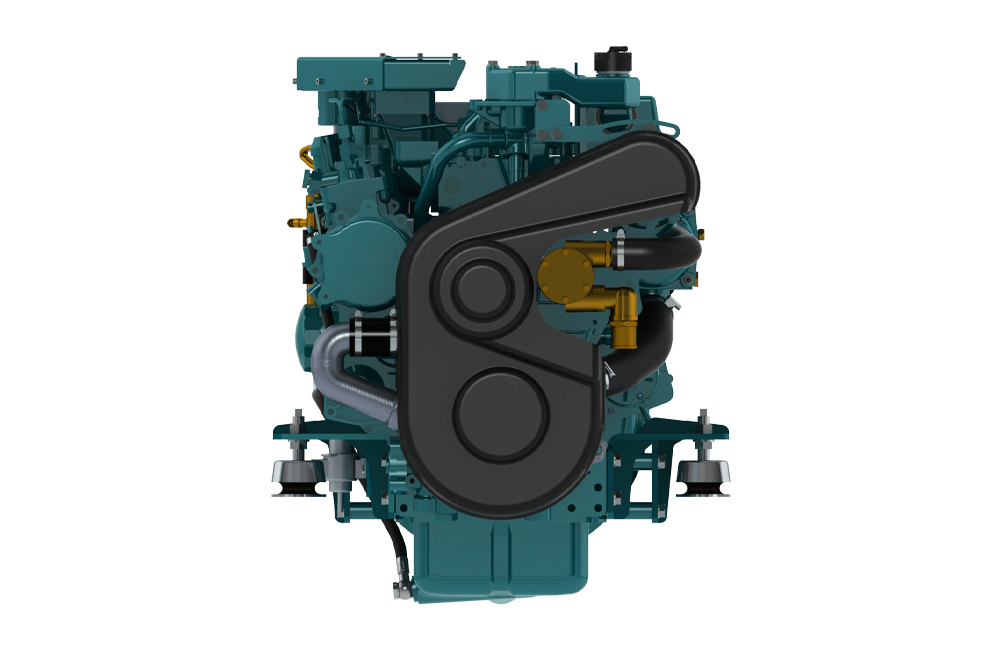

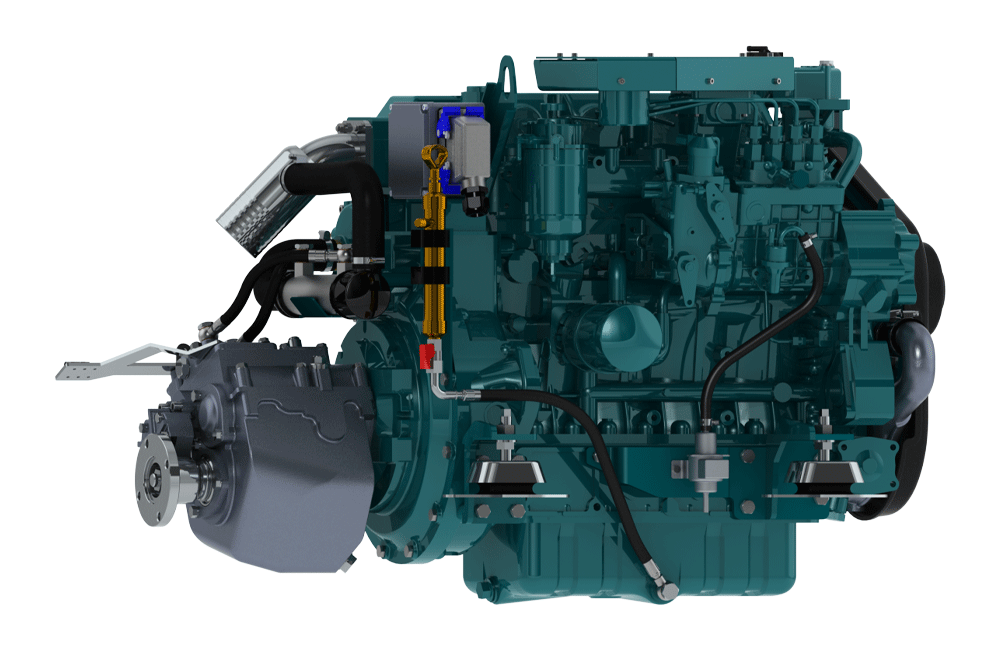

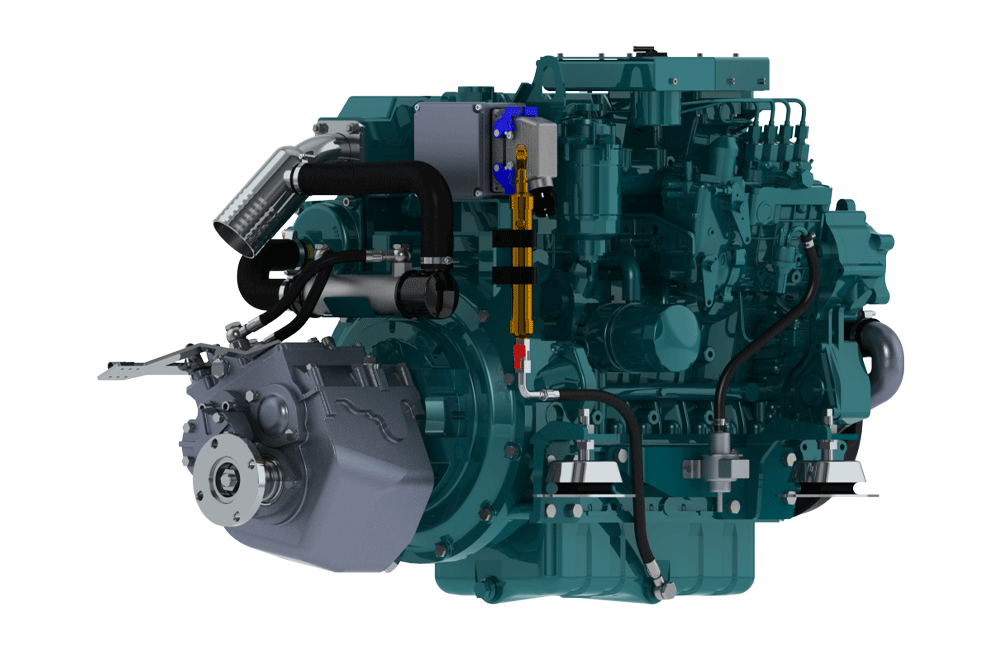

Photos may show equipment that is not standard.
Dimensions and weight may vary depending on specific specifications.
Photos may show equipment that is not standard.
