AB 197
Features
| Technical specifications | |
|---|---|
| Base | Kubota |
| Type | Vertical, water cooled 4-cycle IDI diesel engine |
| Cylinders | 4 |
| Bore x stroke - mm(in) | 100,0 x 120,0 (3.937 x 4.724) |
| Aspiration | Turbocharged |
| Displacement - L (cu.in) | 3.769 (230,0) |
| Compression ratio | 19 |
| Power rating | 72.8 (97) / 2600 |
| Maximum torque - Nm (lb-ft) / rpm | 325.0 (239.7) / 1500 |
| Fuel injection pump type | In-line pump |
| Starter (V - kW) / alternator (V - W) | 12 - 3.0 / 12 - 1080 |
| Weight (kg) | 297 KG |
| ID Ø salt water hose (mm) | 33.7 (1") |
| ID Ø diesel fuel inlet hose (mm) | 8 |
| ID Ø diesel fuel return hose (mm) | 6 |
| Length x width x height (mm) | 1125 x 630 x 760 |
*Without gearbox.
Technical specifications are subject to change without prior notice.
Dimensions and weight may vary depending on specific specifications.

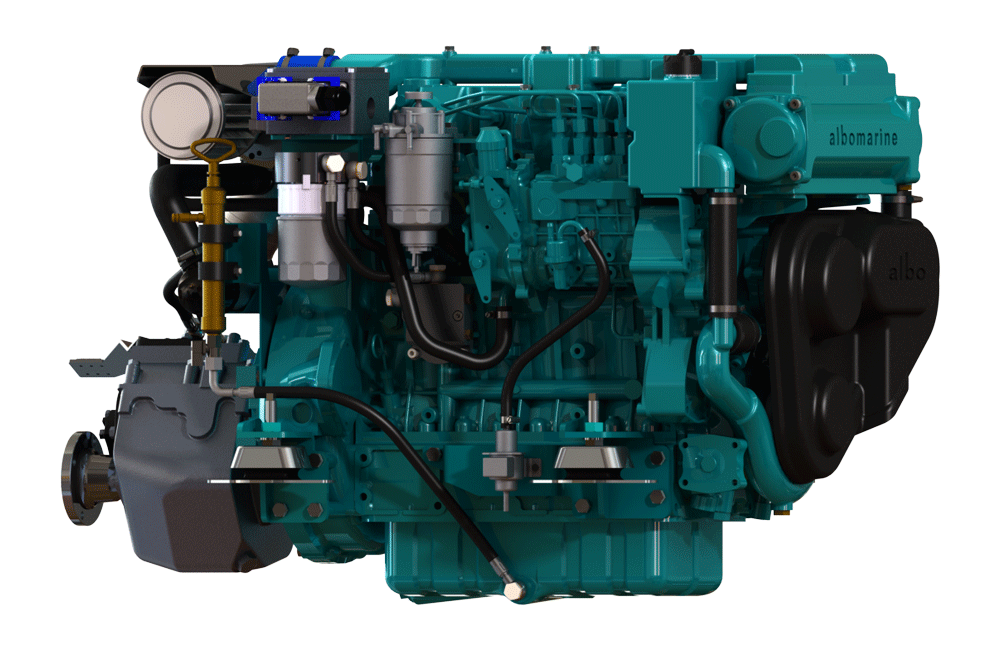

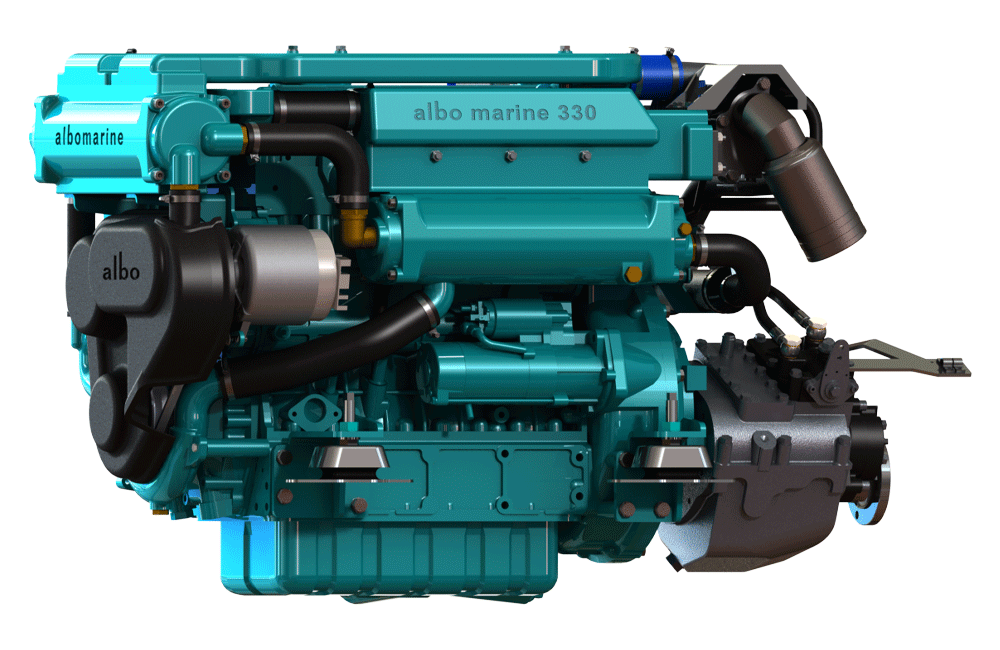

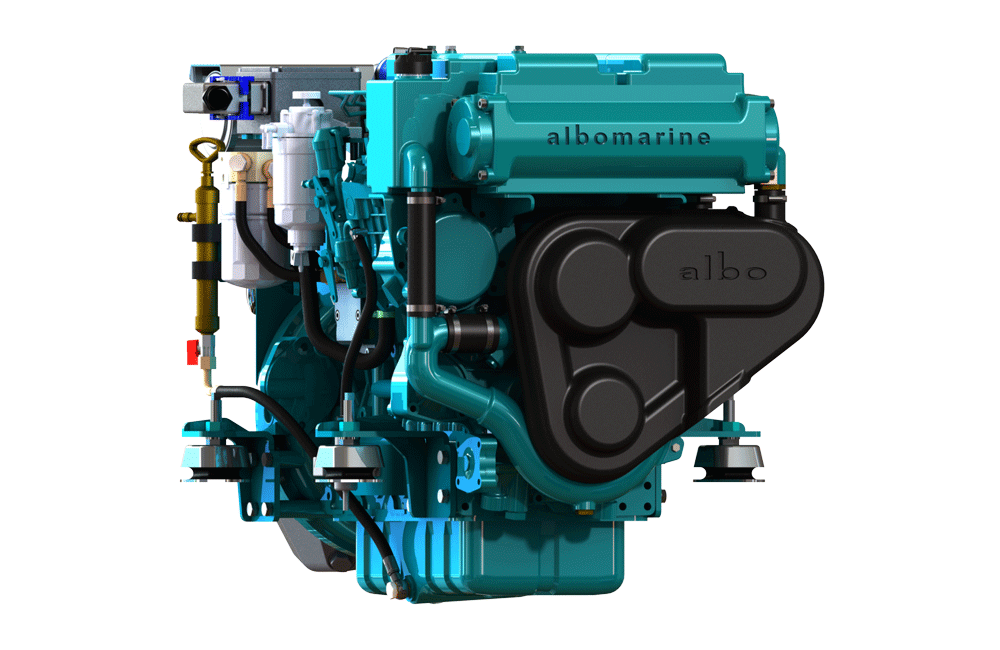

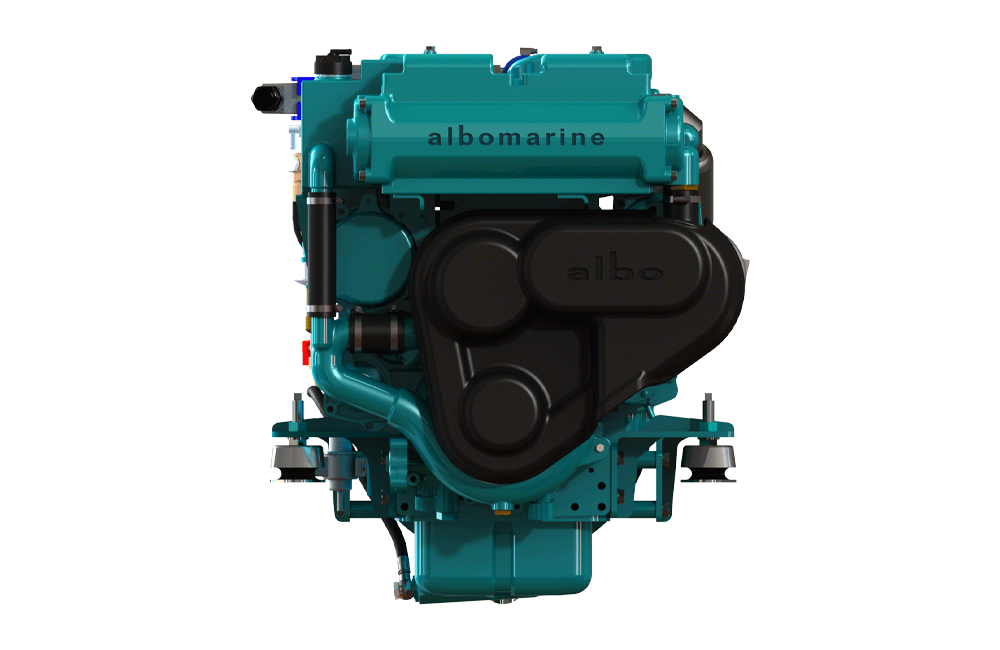

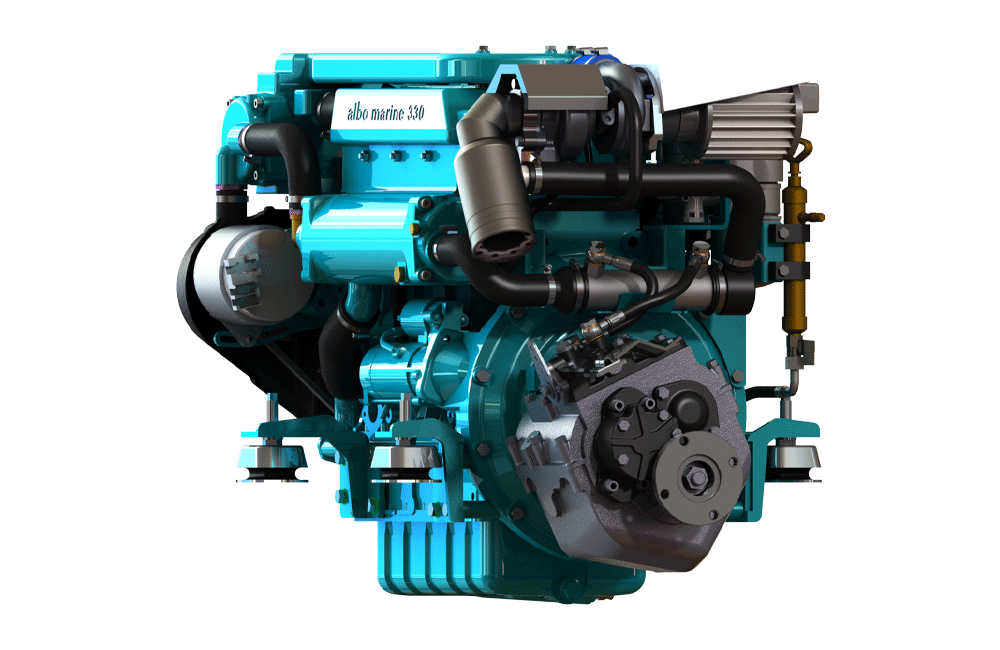

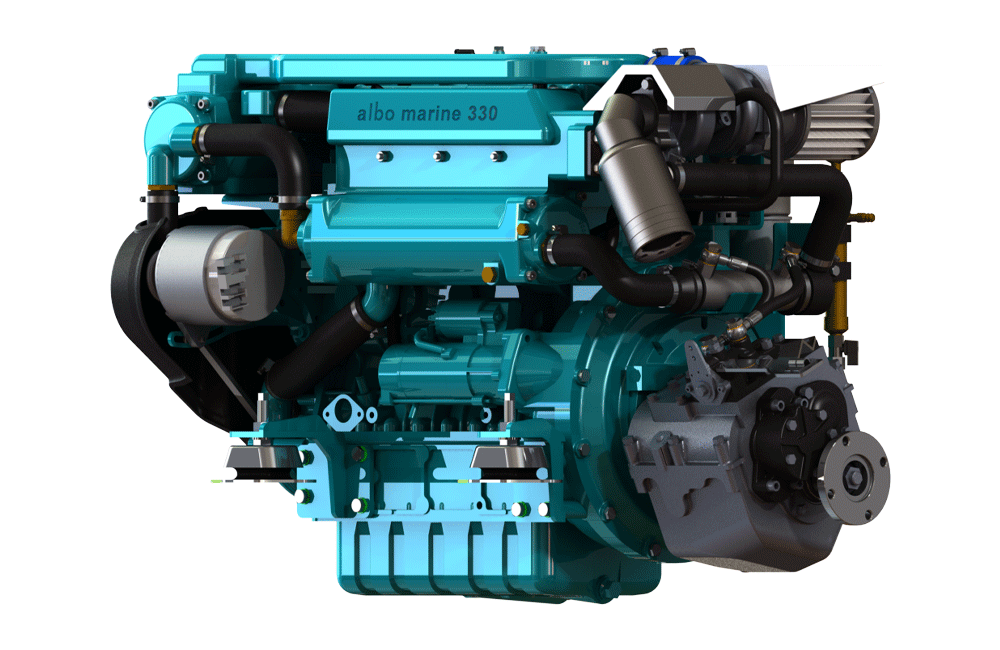

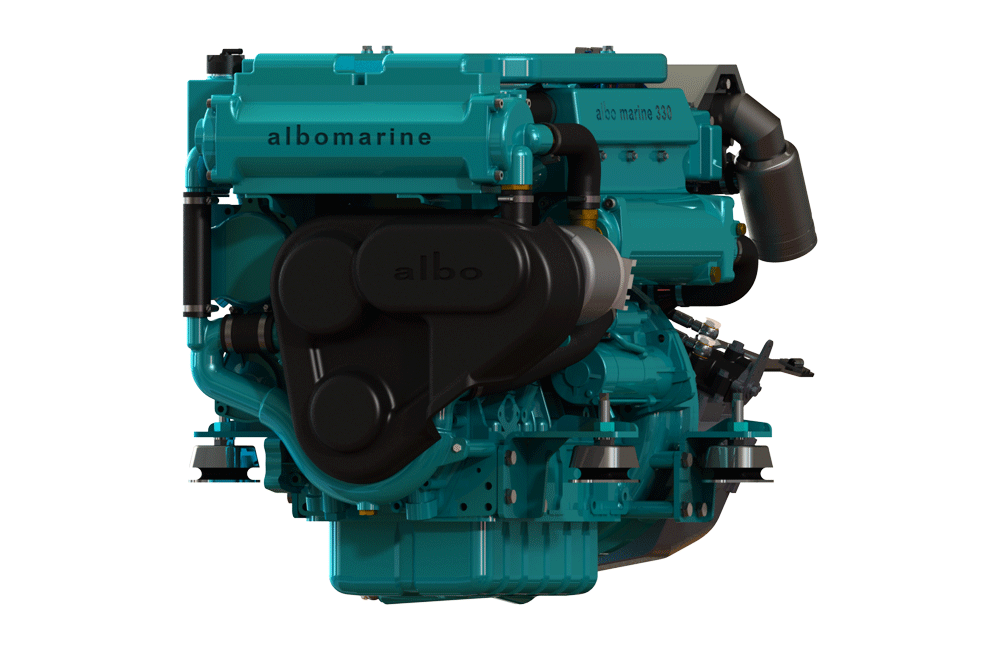

Photos may show equipment that is not standard.
Dimensions and weight may vary depending on specific specifications.
Photos may show equipment that is not standard.
